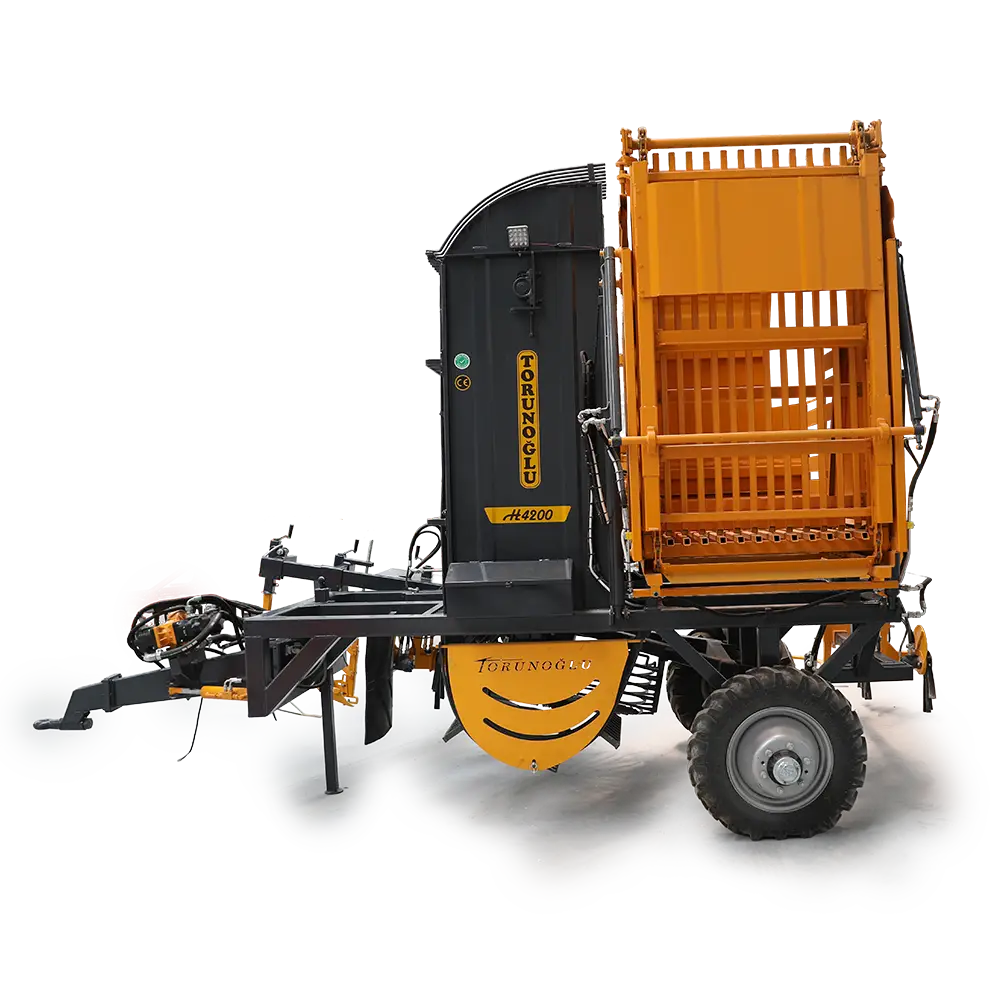

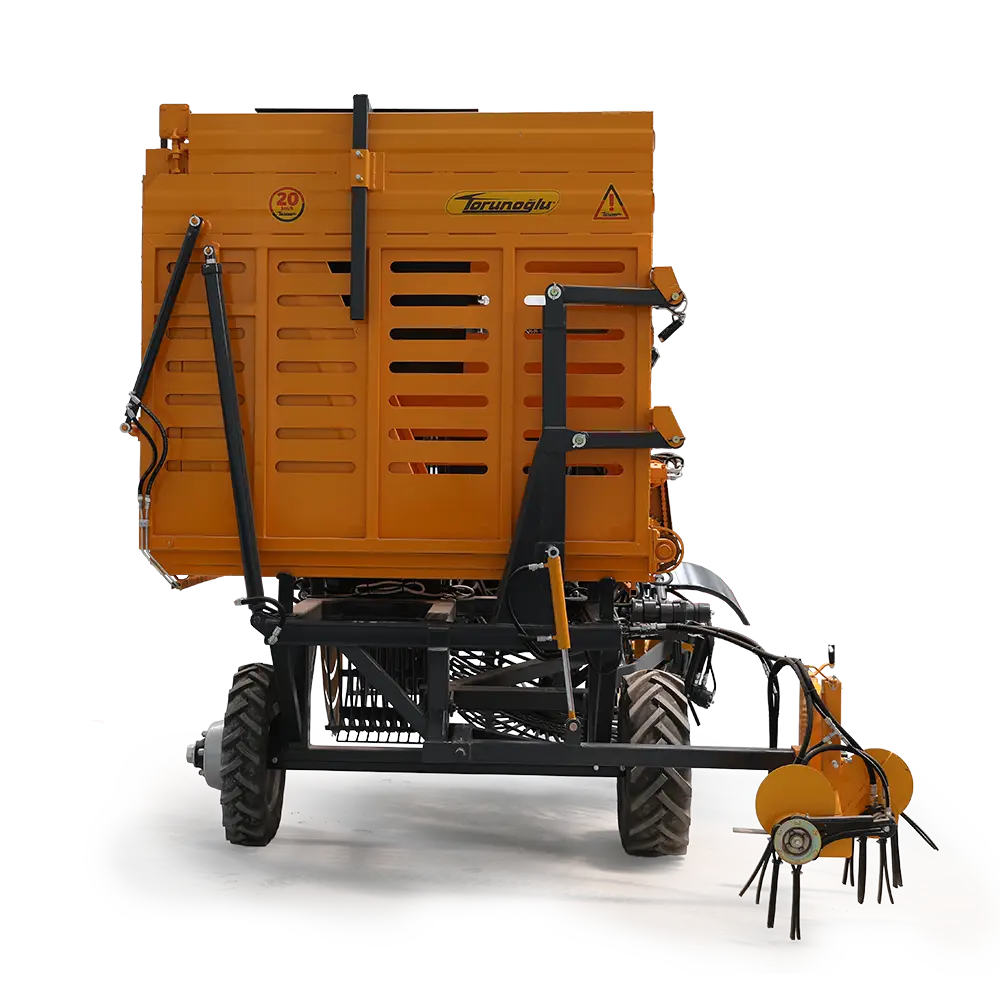

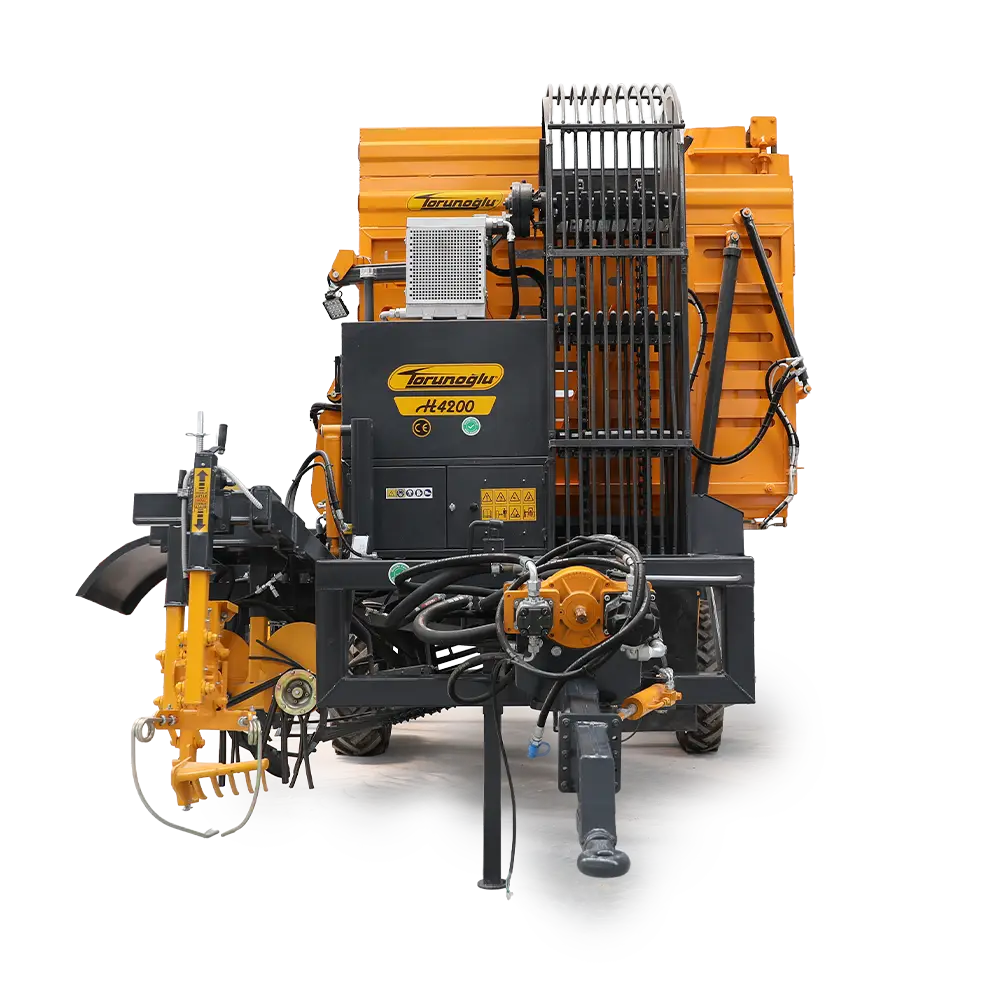

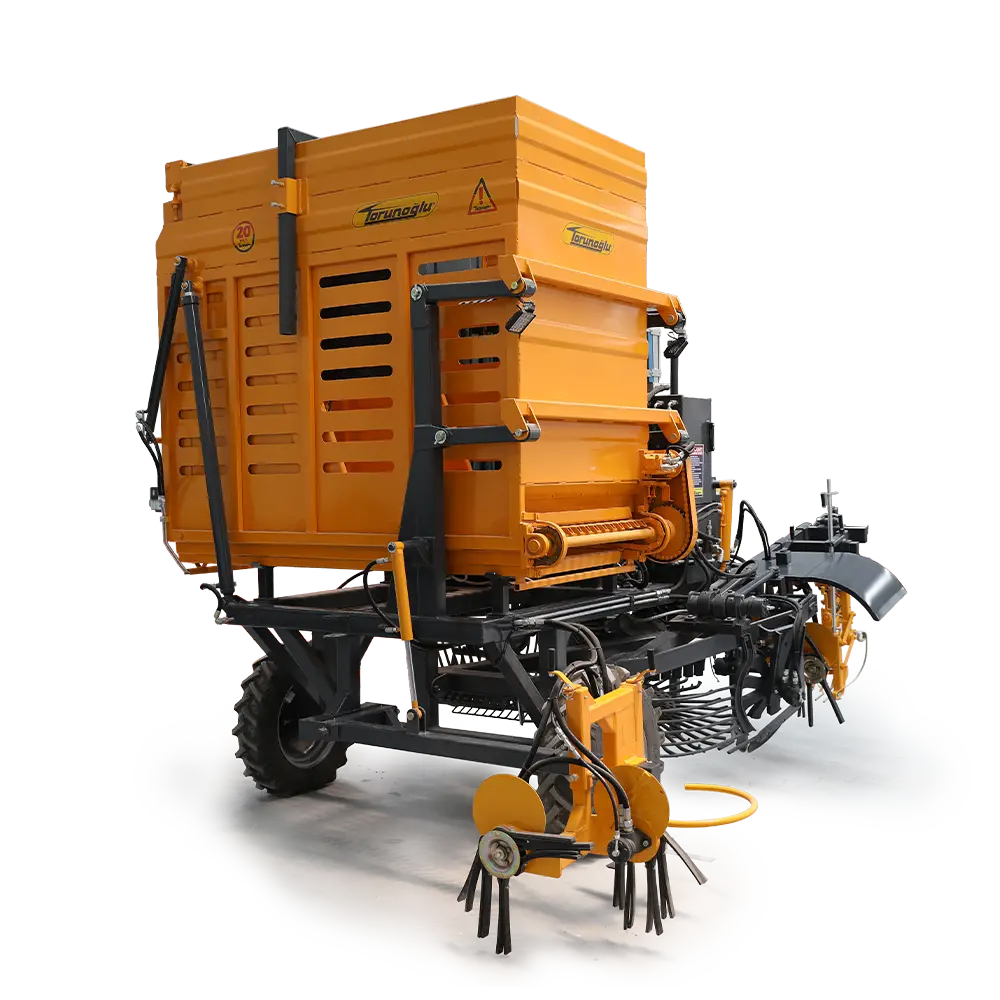

H4200 Single Row 3-Ton Sugar Beet Harvester
It is a single-row combined harvester that performs the topping, lifting, cleaning, storing, and unloading of sugar beets all in a single operation. It is attached to the tractor's drawbar.
A beater system positioned between the lifting blades makes it highly efficient in muddy conditions. In our H4200 model, the hopper lifting arms feature a parallel linkage design; while the hopper reaches a discharge height of 420 cm, its angle with the ground does not exceed 30 degrees. This ensures a much faster unloading process.
The hydraulic system's oil reservoir is mounted directly on the machine, and it uses number 46 hydraulic oil. An automatic tracking system ensures easier operation of the equipment. Both the row spacing and digging depth adjustments are fully automated.
| Technical Specifications | Value |
|---|---|
| Length | 515 cm |
| Width | 340 cm |
| Height | 365 cm |
| Weight | 3150 kg |
| Power | 65-80 HP |
| Tire Diameter | 7.50-18 - 11.5x80 |
| Power Take Off (PTO) | 540 rpm |
| Loading Height | 420 cm |
| Operational Capacity | 1.5 x 2 d/h |
| Storage Capacity | 3000 kg |
| Container Discharge Type | Belted |
